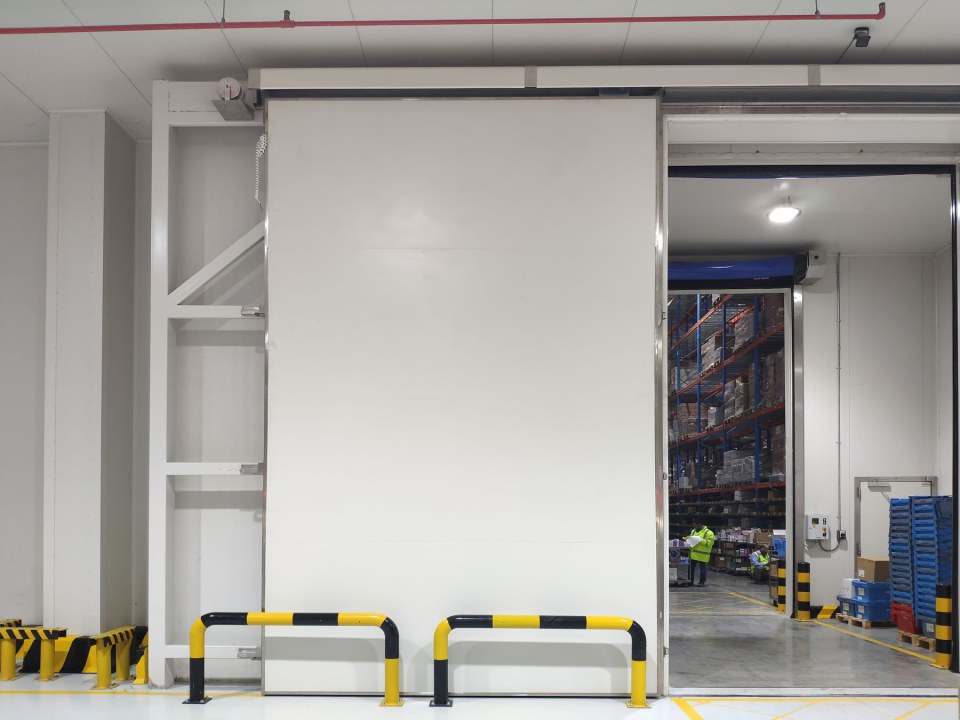

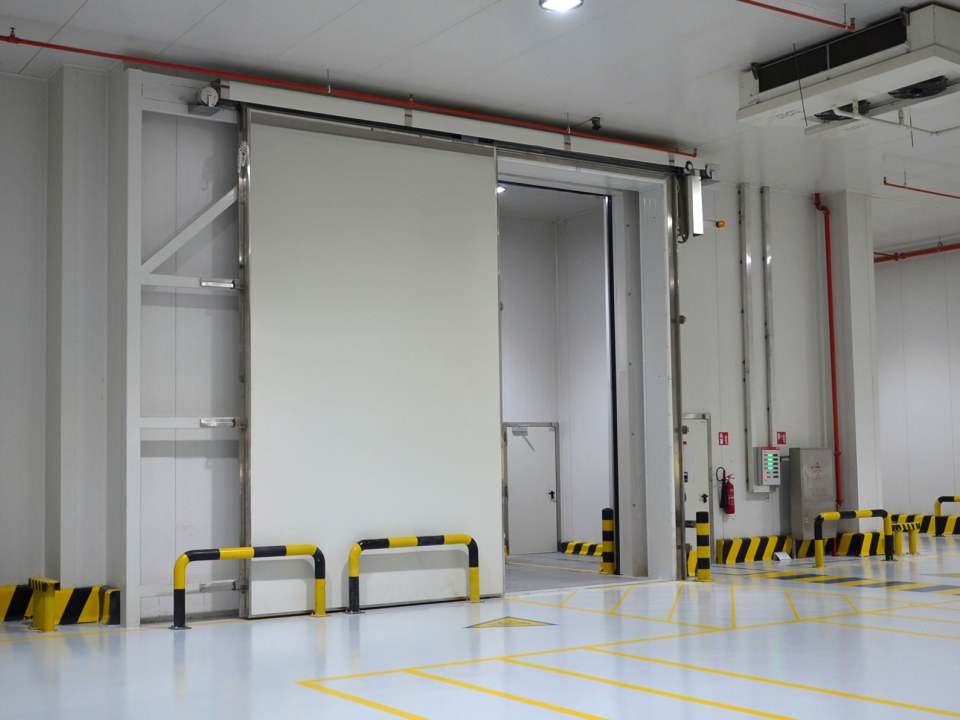

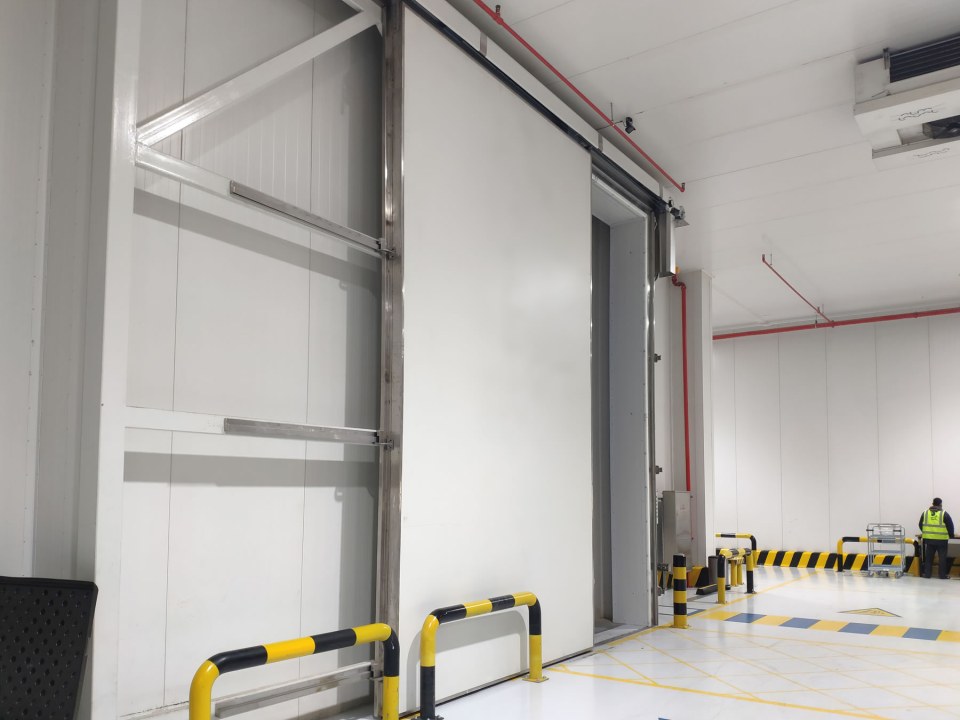

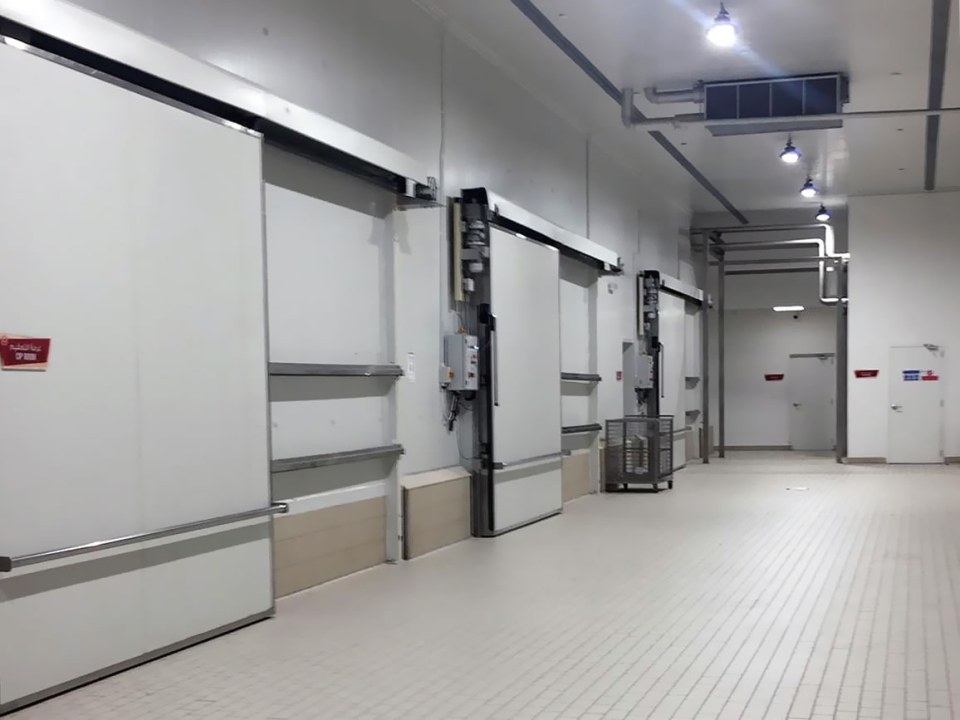

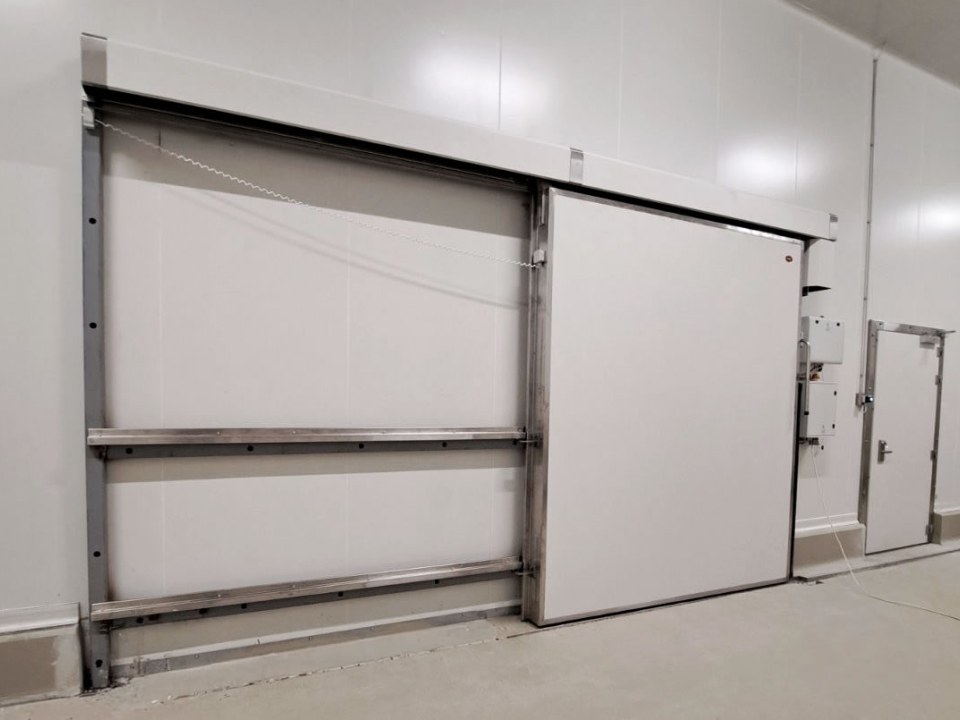

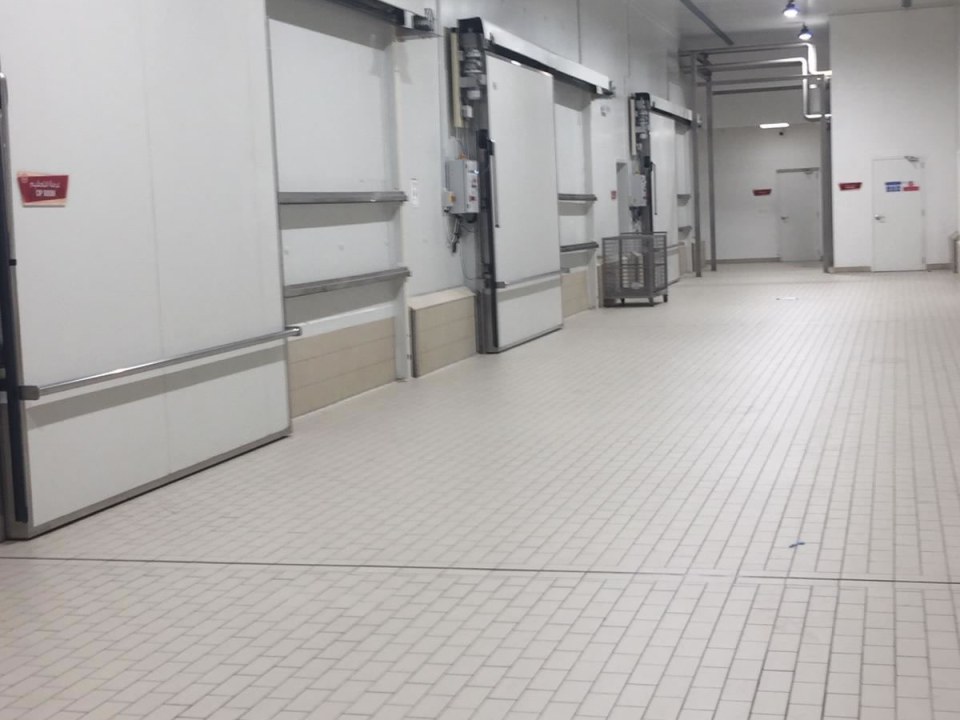

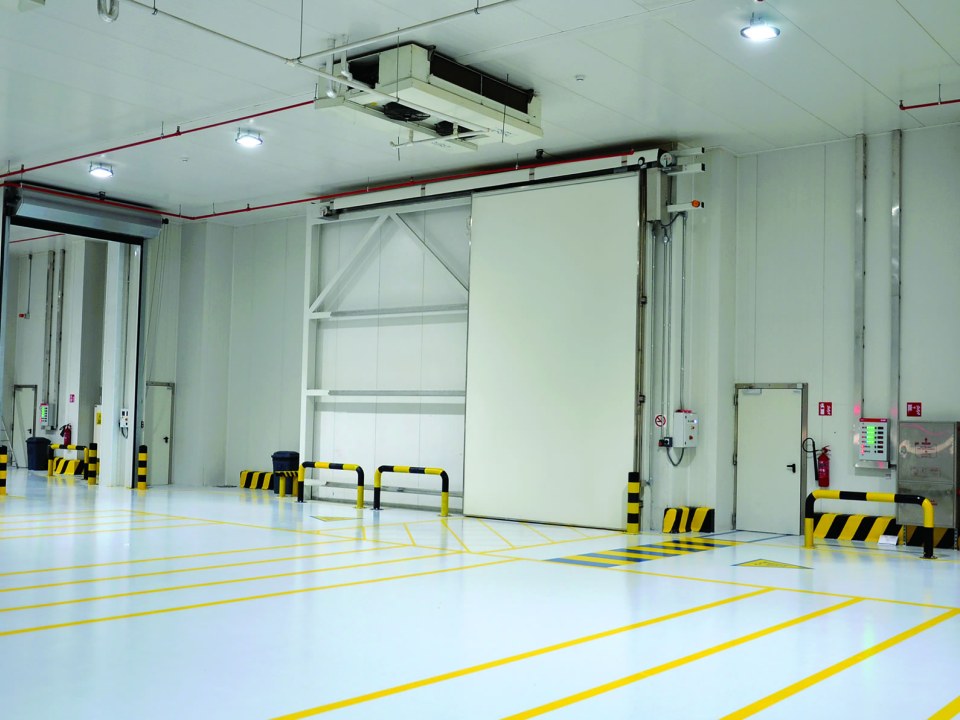

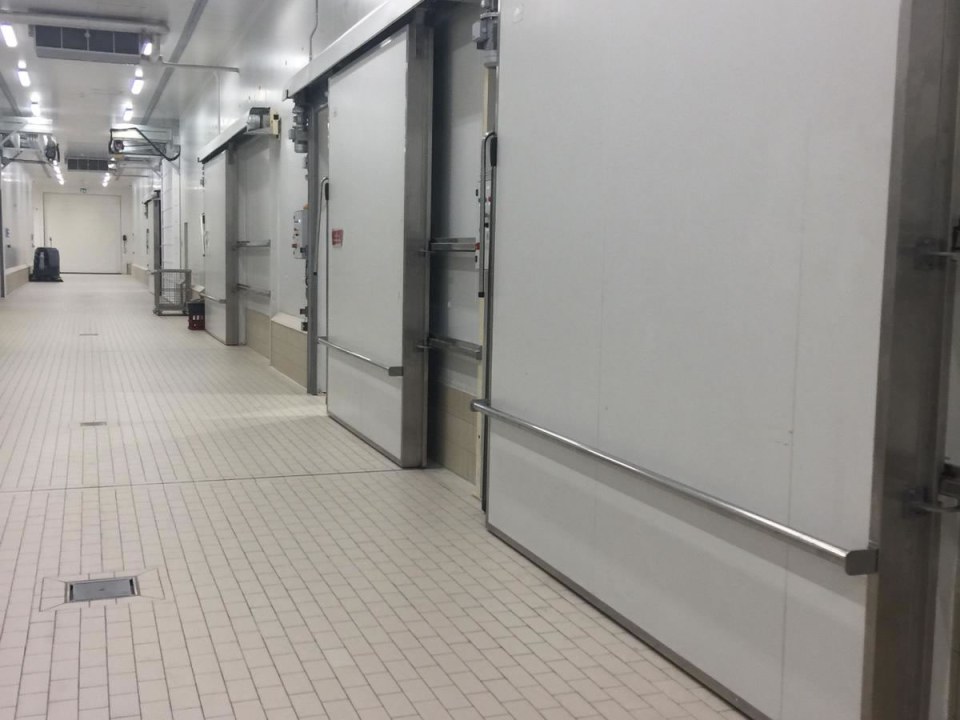

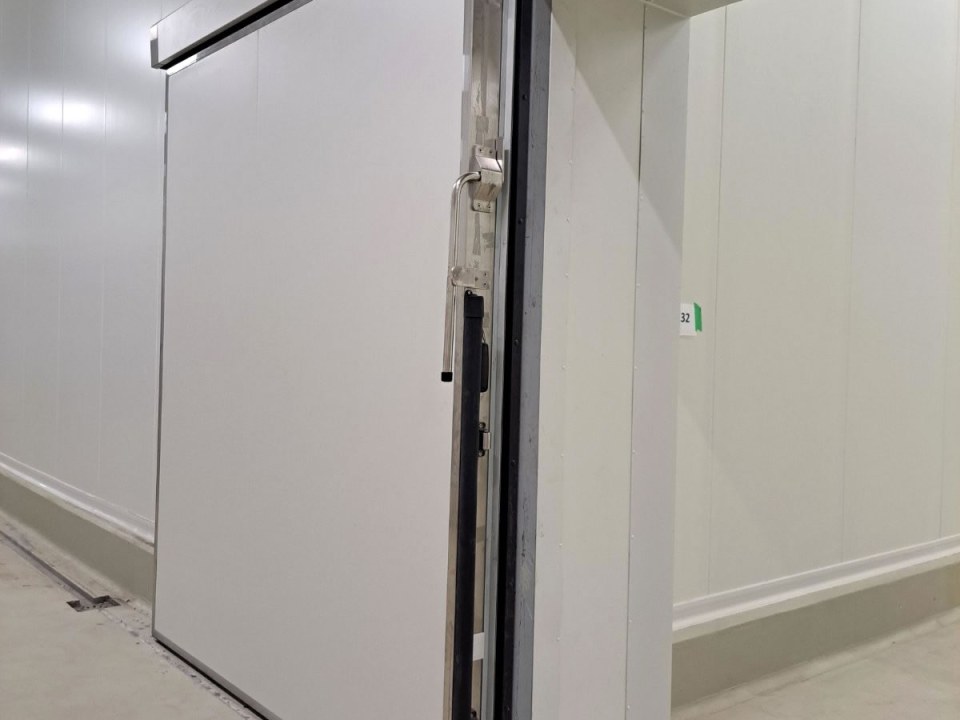

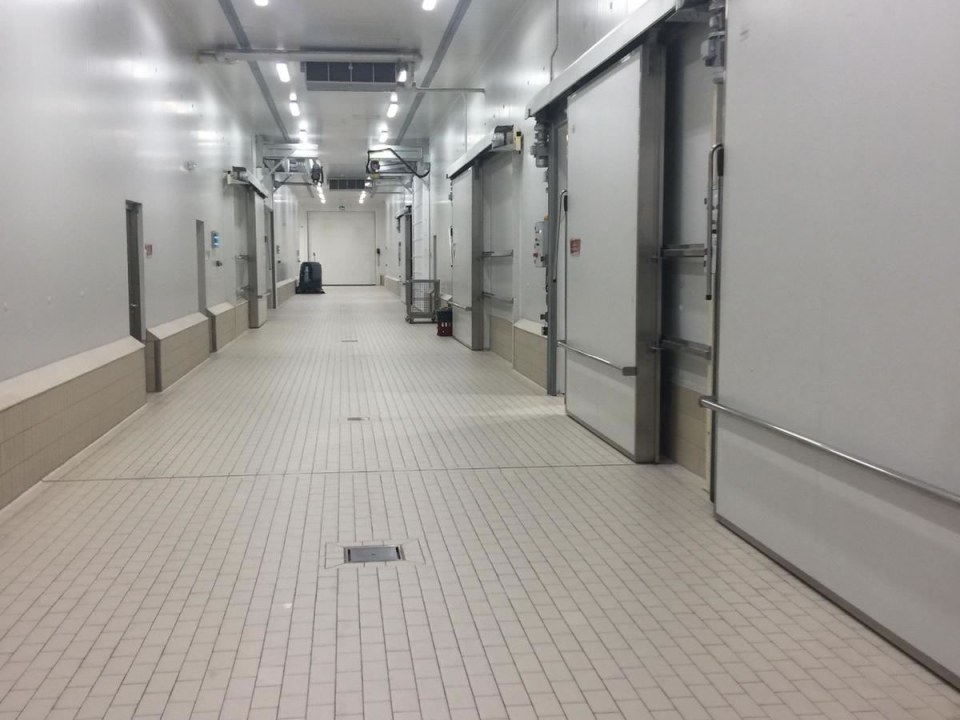

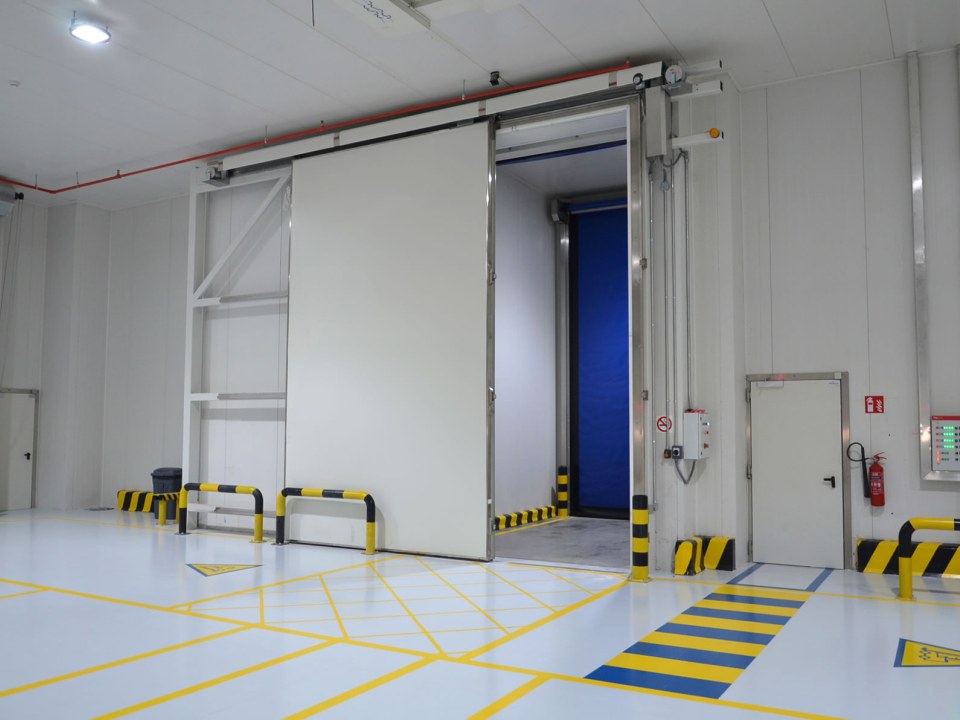

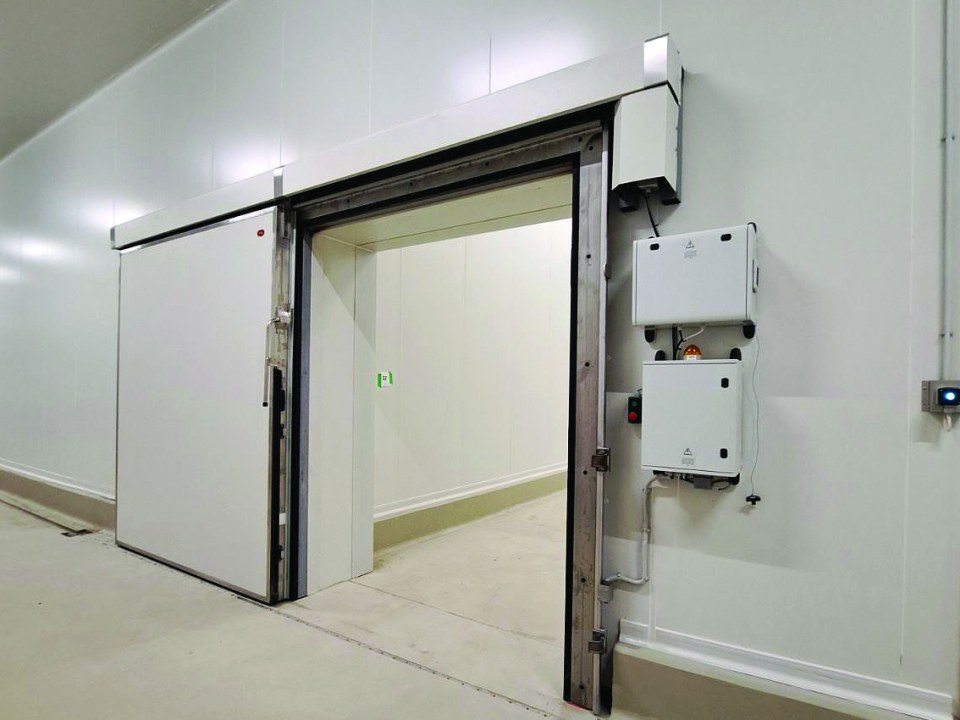

Fire rated automated sliding freezer and cold storage door

Meet the fire rated automated sliding freezer and cold storage doors by AMP!

Fire rated doors offer the safest solution to the cold storage doors, providing protection from the fire for more than 90 minutes. They are constructed with high technology fireproof materials and they bear CE EN 1634-1 certification, in order to ensure fire safety.

Cart CFC & HCFC FRE Customizable dimensions Safe for food storage Forklift ACILITATES THE HACCP METHOD Motorized pallet jack Pallet Jack Personnel Ready for nstallation CAN BE USED BETWEEN-40 °C / +90 °C NSF

Thermal insulation

Up to 0 °C for chiller and up to -40 °C for freezer

Adjustable

Can be constructed in all dimensions

Color variation

Wide colour range

Certified

Certified with ISO 9001: 2015 & CE 89/106 EN13241-1 & NSF/ANSI 51


 Fire rated electric sliding doors description

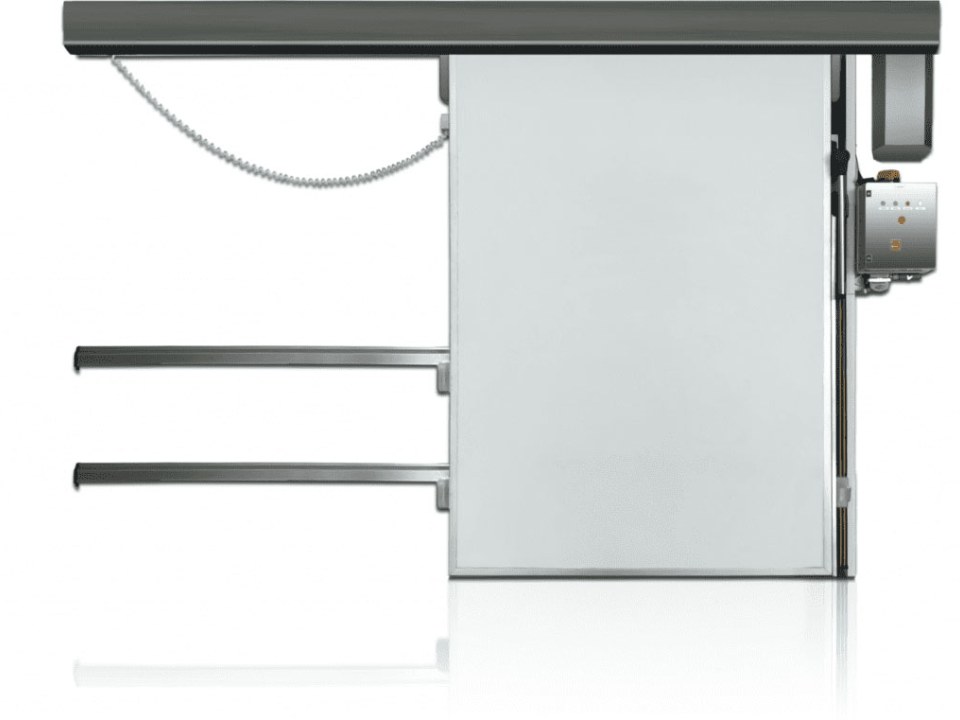

AMP Fire rated electric sliding door

Testing according to CE EN 1634-1 European Fire Protection Standard

When carrying out the fire resistance tests of the doors, the fire resistant doors include the entire door system including the shutter, door leaf, frame and all accessories. The installation of the door is also part of this system. The laboratory which carries out the fire resistance tests of the doors is certified for these of tests. Below is the certificate of the results of the fire tests.


Fire rated electric sliding doors specifications

Door leaf thickness

Door leaf thickness 120mm providing insulation for low temperature freezer and positive temperature chiller doors.

Door surface

Galvanized sheet is used with external foodsafe antibacterial plastisol coating (250μm).

Non-flammable materials

Non – flammable materials providing fire endurance up to 60min.

Materials

Inside the door high tech materials are combined with non flammable polyurethane according to DIN 4102-1.

Heating Elements

Heating elements are used inside the frame and inside the threshold in freezer door.

Frame

Insulated frame with high-tech materials made of Stainless steel 304 (sheet metal thickness 1,5mm).

Autoclose mechanism

In case of fire, (when no power failure occurs) the control panel, which is connected to the main fire protection system, closes the door.

Door Closing

In case of fire and power failure, the motor clutch is disengaged so the door can easily moved by hand and the door is automatically closed by autoclose mechanism, fire tested for use on fire protection sliding doors. Damper is used to ensure extra safety.

Stainless steel

Stainless steel 304 sheet metal sliding guide fabrication (sheet metal thickness 2mm). Stainless steel heavy duty external and internal handle. Stainless steel wheels and brackets. Stainless steel sliding rail.

Electronic accessories

Electronic accessories current at 12-24V. Automatic Fire Door with certified Control Panel Input 230Vm, 50Hz, (L+N).






Fire rated electric sliding doors details

AMP Fire rated electric sliding door details

Fire rated electric sliding doors options

AMP Fire rated electric sliding door options

Ανοξείδωτη Λαμαρίνα

AMP Fire rated electric sliding door options

Ανοξείδωτη Λαμαρίνα με κυκλικό σχέδιο


Fire rated electric sliding cold room door optional inox implementation

AMP's fire rated electric sliding inox cold room door is made of German-made INOX 304 sheet metal (plain or circular pattern), which prevents corrosion and rust. It is installed with a stainless steel corner box, internally reinforced with durable heavy-duty PVC, with a modern German design and high mechanical strength. It can be disinfected with water, soap or disinfectants without damaging the surface or its appearance. It is resistant to hard use, chemicals and impacts, so it has a long life without needing much maintenance. It is also easy to clean as it does not catch bacteria, fungus or mold.

AMP inox fire rated electric sliding door

Customizable

You can customize your Cold Storage Door according to your needs by choosing AMP. In this chart you can see all the available options that our factory gives you. You can also add more features to your product by contacting A. Motors office.
