Up to 0 °C for chiller and up to -40 °C for freezer
Can be constructed in all dimensions
Wide colour range
Certified with ISO 9001: 2015 & CE 89/106 EN13241-1

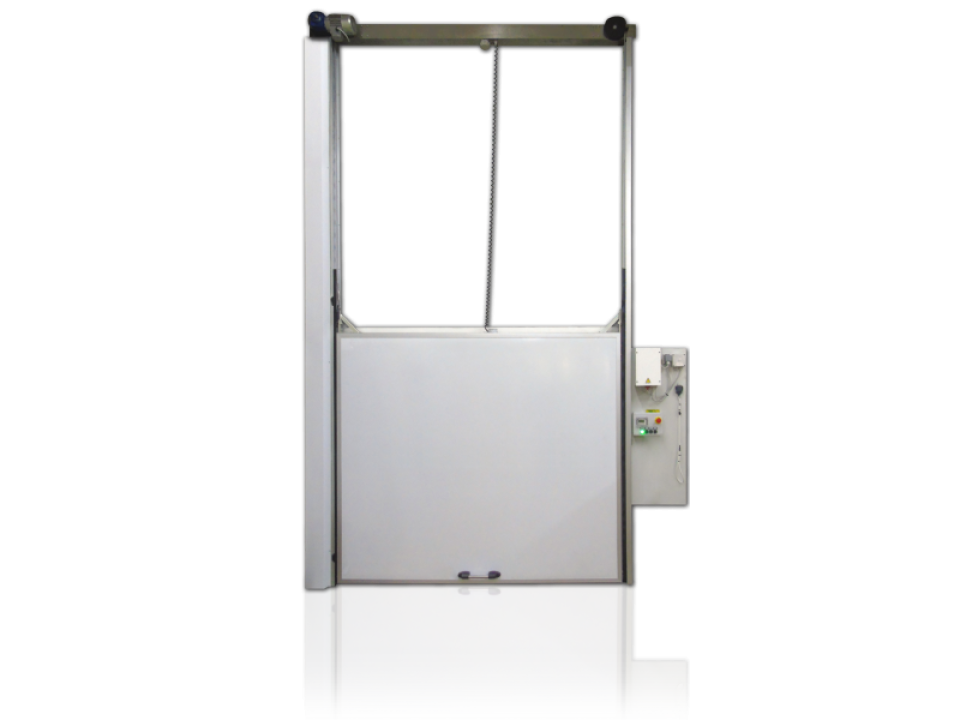

Vertical sliding doors details
Vertical sliding doors specifications
Standard door leaf with Polyurethane insulation supplied from BAYER fire retardant (Germany) of density 40- 42 kg/m³ non flammable, with injection at heated press of 500 tonnes.
Door surface made from German steel sheets 30% thicker than the competition, plasticized to a thickness of 200 μm with Sanitary Steel film coating with antibacterial properties.

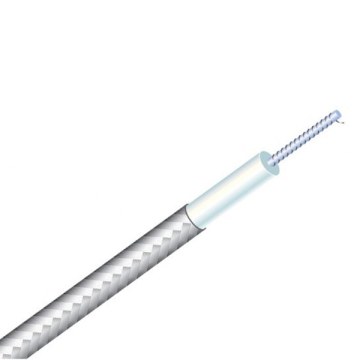

Motion is conveyed by 2 Ø6mm cables. They are positioned on the right and on the left corners in order to correctly lift the door. The door is well balanced by one only counterweight. This is to let the mounting be easier and to reduce the side dimensions.
The sliding guides have been especially conceired for such a door and they meet all the safety, sturdiness and easy installaton requirements. The limit stop grants a perfect baskets crushing. The plastic roller grants a linear motion and reduces the noise.
The use of 2 cables connected at the same counterweight produces a safety redudancy. This is because whether one cable is cut, the other is able to support the door. In case both the cables are cut, a special falling prevention safety device doesn’t allow the door to fall down.
Possibility of choice between manual opening-closing or automated via a mechanism with a motor connected to a multifunction panel.
Switchgear IP 56 is suitable for installation in a moist environment and includes an electronic circuit for controlling the functions and an inverter to control the paths during operation of the opening-closing and the necessary needs in electrical power in respect to the security settings.
Five year written guarantee. Certified with ISO 9001: 2015 & CE 89/106 EN13241-1.
Customizable vertical sliding doors
Vertical sliding doors options
Decorative Protective Pumpers
Stainless Steel Sheet
Stainless Steel Sheet with circular design
Vertical sliding cold room door optional inox implementation
AMP's vertical sliding cold room inox door is made of German-made INOX 304 sheet metal (plain or with a circular pattern). It is resistant to hard use, chemicals and impacts, so it has a long life without needing much maintenance. It prevents corrosion and rust and is easy to clean as it does not catch bacteria, fungus or mold. It is installed with a stainless steel corner case, internally reinforced with durable heavy-duty PVC, with a modern German design and high mechanical strength. It can be disinfected with water, soap or disinfectants without damaging the surface or its appearance.
