Electric sliding door for cold rooms

Meet the electric sliding doors for chiller & freezer cold rooms by AMP!

The electric sliding chiller & freezer cold storage doors are manufactured at our facilities, utilizing the German know-how that we have acquired collaborating with the biggest German raw materials manufacturers of the sector.

Cart CFC & HCFC FRE Customizable dimensions Safe for food storage Forklift ACILITATES THE HACCP METHOD Motorized pallet jack Pallet Jack Personnel Ready for nstallation CAN BE USED BETWEEN-40 °C / +90 °C NSF

Thermal insulation

Up to 0 °C for chiller and up to -40 °C for freezer


Can be constructed in all dimensions

Color variation

Wide colour range


Certified with ISO 9001: 2015 & CE 89/106 EN13241-1 & NSF/ANSI 51

Electric sliding doors description

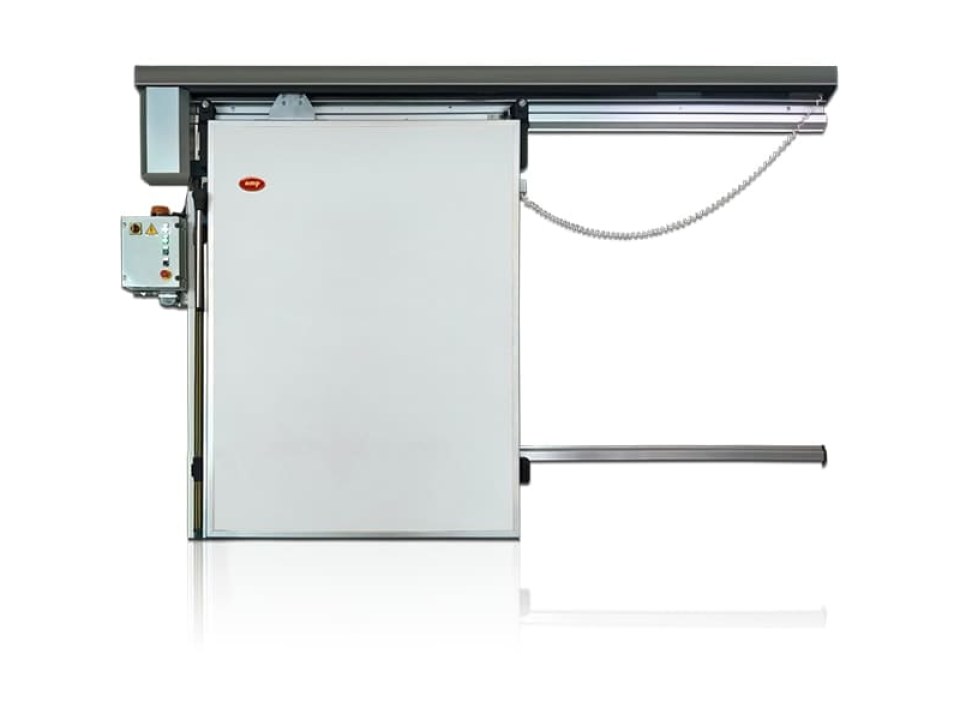

AMP Electric Sliding Door

Electric sliding doors for various applications!

Our experience in combination with the excellent quality german raw materials & state-of-art latest technology equipmen t & handmancraft allow us to manufacture doors of high endurance & thermal insulated according to the European HACCP regulations and with the necessary CE certifications.

Electric sliding doors specifications

Automatic activation

Automatic activation of sliding door via a mechanism with a motor connected to a multifunction panel. Switchgear IP 56 is suitable for installation in a moist environment and includes an electronic circuit for controlling the functions and an inverter to control the paths during operation of the opening-closing and the necessary needs in electrical power in respect to the security settings.


All automation system is pre-cabled therefore the connection of the board becomes easy through a multipolar connector which is located at the bottom of the board. There are already pre-installed factory settings which are easily changed depending on the needs of each user.


Speed is set to 0,27 m/sec (as per regulations) and the engine has a reversible reducer. The speed can change easily from the board.


The primary safety device for crash protection is a sensitive bar resistant located on the vertical edge of the door panel, which in case of impact with an obstacle, automatically stops the door and reverses motion.


The controls of the STOP (end of movement) during the opening and closing is activated by a micro switch. The transmission is through a chain with adjustable power and not with tapes for cost reasons with breakage problems.

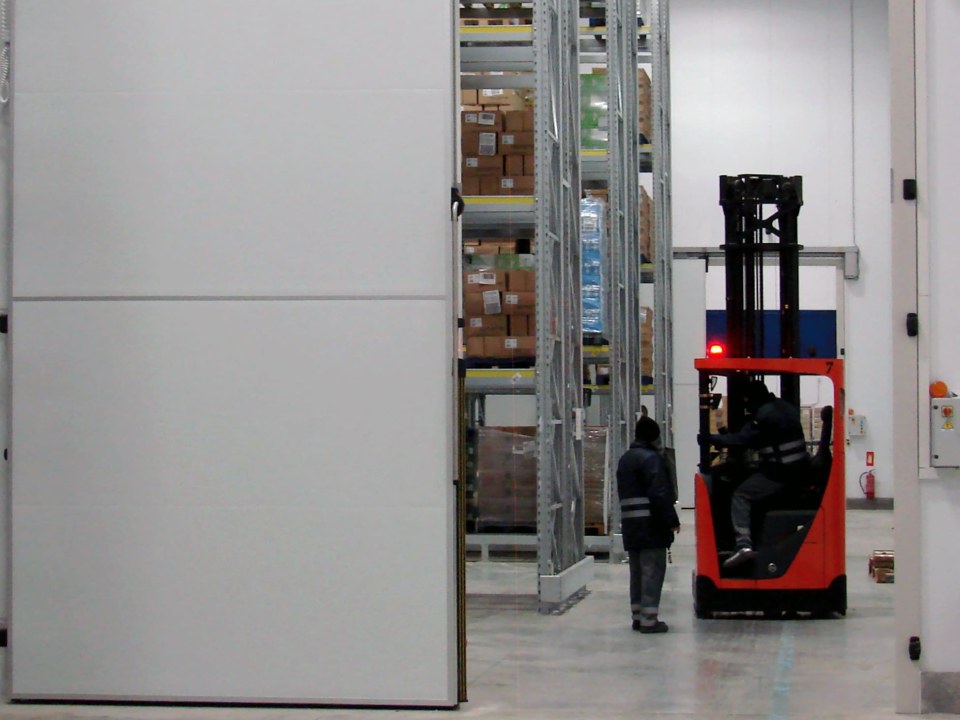

A yellow light is flashing signals that the door is in motion. Besides the many arrangements for opening – closing the door from the board, two cords connected to switches are placed in front and behind the door (at desired distances) to facilitate the operator of the forklift at the entrance and exit of the cold room.

Power Failure

In case of power failure the door is operated manually.

Electric sliding doors details

AMP electric sliding door details

Electric sliding doors options

AMP electric sliding door options

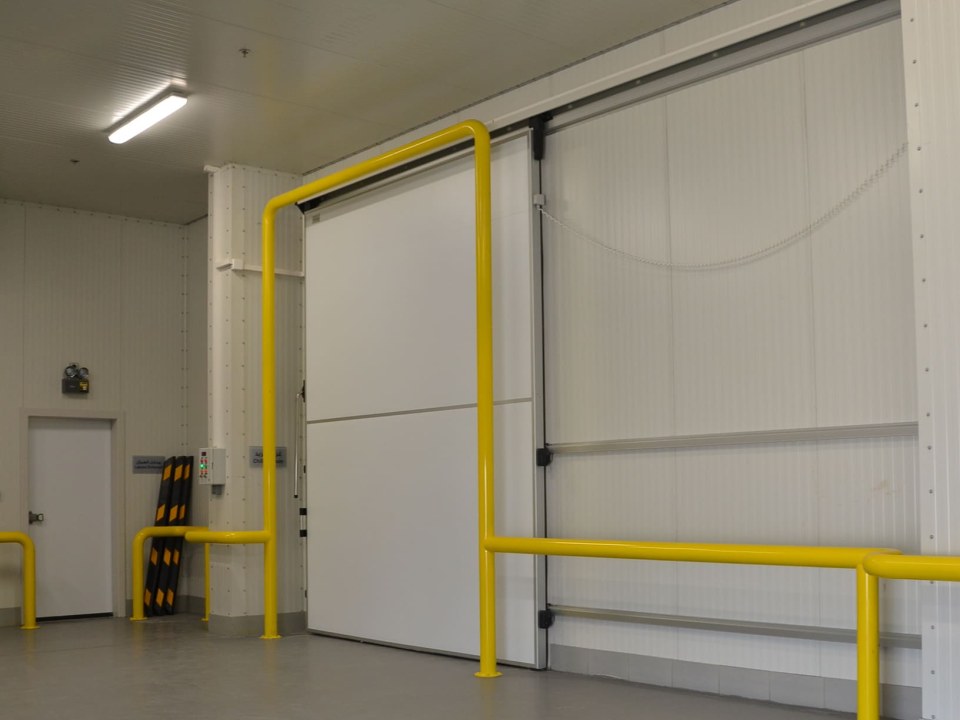

Decorative Protective Pumpers

AMP electric sliding door options

Anti-slip entrance ramp

AMP electric sliding door options

Stainless Steel Sheet

AMP electric sliding door options

Stainless Steel Sheet with circular design

AMP electric sliding door options

Security lock

AMP electric sliding door options

Inox Control Panel

AMP electric sliding door options

Motion Detector

AMP electric sliding door options

Large dimensions window


Electric sliding door for cold rooms optional inox implementation

AMP's electric sliding inox door for cold rooms is made of German-made INOX 304 sheet metal (plain or with a circular design). It is installed with a stainless steel corner case, internally reinforced with durable heavy-duty PVC, with a modern German design and high mechanical strength. It is resistant to hard use, chemicals and impacts, so it has a long life without needing much maintenance. It prevents corrosion and rust and is easy to clean as it does not catch bacteria, fungus or mold. It can be disinfected with water, soap or disinfectants without damaging the surface or its appearance.

AMP inox sliding electric door


You can customize your Cold Storage Door according to your needs by choosing AMP. In this chart you can see all the available options that our factory gives you. You can also add more features to your product by contacting A. Motors office.

Electric sliding doors additional features

AMP electric sliding door additional features

Remote control

One or more remote controls, push-button for opening-closing and security mushroom on the control panel. Opportunity for partial opening.

AMP electric sliding door additional features

Special disconnect mechanism

Special mechanism which in case of power failure, disconnects the chain from the motor and the door opens easily as a manual door.

AMP electric sliding door additional features

Movement with belt

Possibility of movement of the door with belt instead of chain for silent operation of the opening-closing.

AMP electric sliding door additional features

Torque limiter

Torque limiter as an extra safety device of the electric sliding door

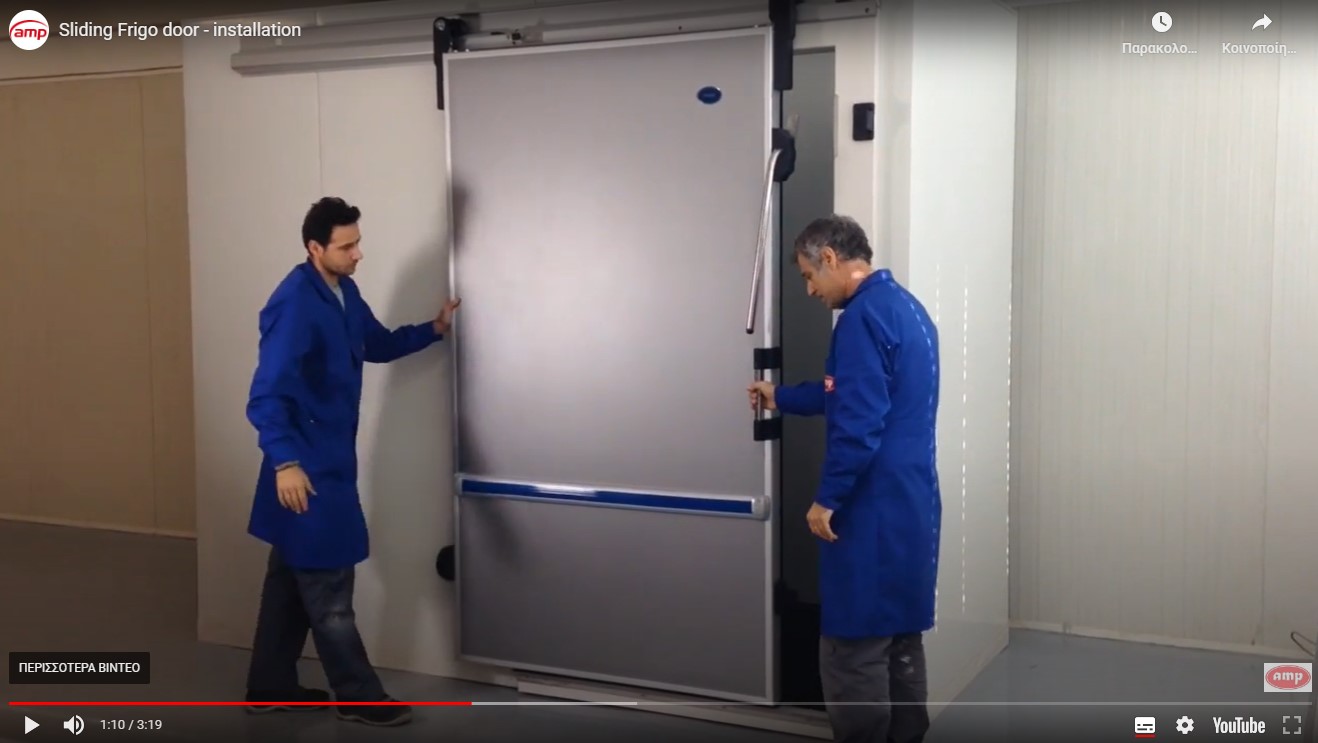

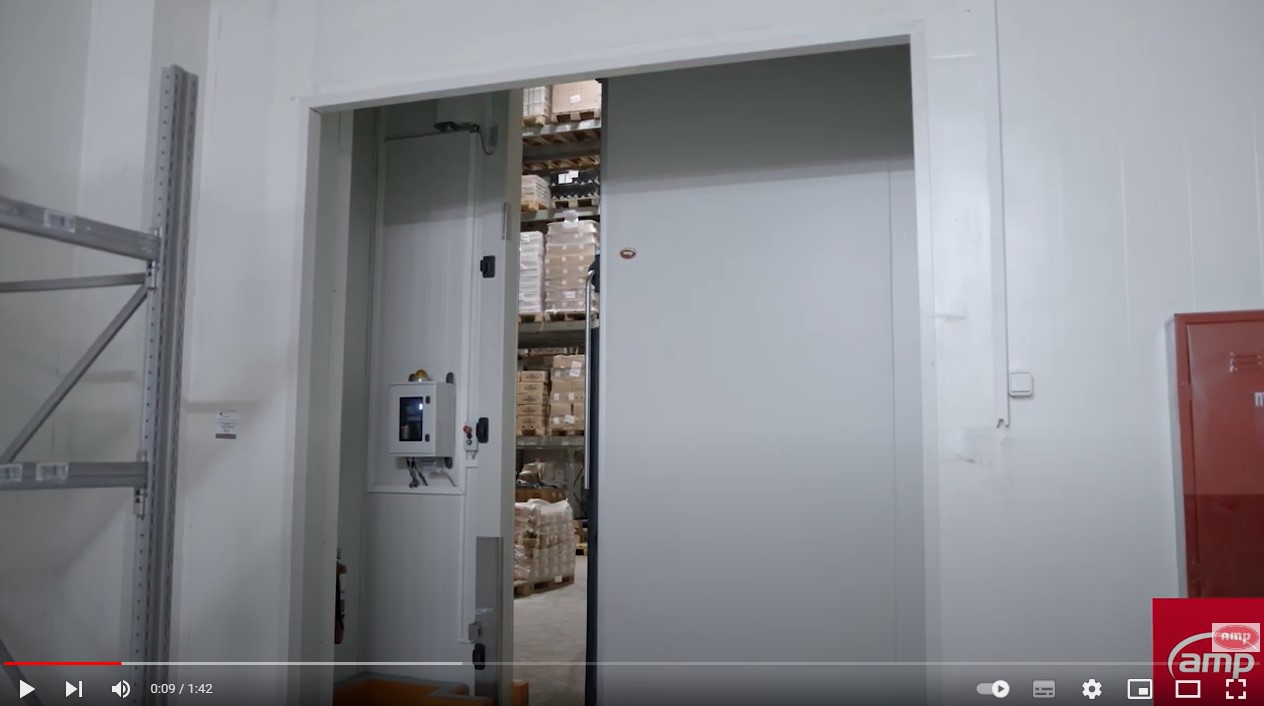

Electric sliding doors installation video
